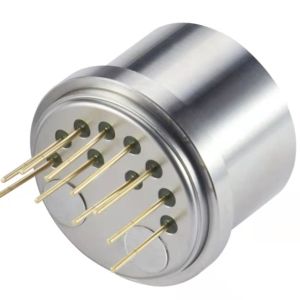

Dynamic Quartz Flexure Accelerometer High Accuracy 60g Range

Name: Dynamic Quartz Flexure Accelerometer High Accuracy 60g Range
Brand: Firepower
Price: 1260 USD

Model Number : JB3-01

Place of Origin : China

MOQ : 1

Price : 1260

Payment Terms : T/T

Supply Ability : 500/month

Delivery Time : 1 week for sample

Packaging Details : sponge/box

production name : inertial accelerometer

range : 60g

weight : <30g

size : Ф25.4X30mm

noise : ≤5mv

natual frequency : 350~800 Hz

Scale factor K1 : 1.0±0.2 mA/g

Brand Name : Firepower

Contact Now

dynamic quartz accelerometer aviation accelerometer

Applications

Drilling and Inclination Measurement,

Aeronautics and Astronautics,

Instruments and Equipment

Features

Low lag

High resolution

High stability

High accuracy

Low power

Excellent overload capacity

Small volume

Low cost

Broad measurement range

Performance Characteristics

No.

Parameters

JB3-01

Range

±60g

Threshold

5μg

Bias K0/K1

≤±5 mg

Scale factor K1

1.0±0.2 mA/g

Second order nonlinearity coefficient K2

≤±20μg /g2

0g 4 hours short-term stability

≤10 μg

1g 4 hours short-term stability

≤10 ppm

Bias comprehensive repeatability σK0 (1σ,1 month)

≤15 μg

Scale factor comprehensive repeatability σK1/K1 (1σ,1 month)

≤15 ppm

Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month)

≤±20 μg /g2

Bias thermal coefficient (full temp. mean)

≤±15 μg /℃

Scale factor thermal coefficient (full temp. mean)

≤±15 ppm /℃

Noise (sampling resistance 840Ω)

≤5mv

Natural frequency

350~800 Hz

Bandwidth

800~2500 Hz

Random vibration

10g(20-2000Hz)

Impact

150g,5ms,1/2sin

Working temp.

-55～+85℃

Store temp.

-60~+120℃

Power supply

±12~±15V

Consume current

≤±20mA

Thermal sensor

Ф25.4X30mm

Customizable

Size

Weight

≤30g

Customer Service

Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
Your inquiry related to our products or price will be replied in 24hrs.
Keep informing our customer production process and help arrange quality checking in the factory if necessary.
One-year warranty to our product and negotiable for some cases.
For installation or testing, we could provide on-line instruction and training the whole life.
