Silicon Photonic FOG with Advanced Bias Compensation Algorithm

Name: Silicon Photonic FOG with Advanced Bias Compensation Algorithm
Brand: Firepower
Price: 1 USD

Buy cheap Silicon Photonic FOG with Advanced Bias Compensation Algorithm product

Model Number : MFOG-095

MOQ : 1

Payment Terms : T/T

Delivery Time : 1 week

Brand Name : Firepower

Place of Origin : China

Supply Ability : 1000/month

Packaging Details : carton with sponge

Bias Stability : ≤2°/h

Angle Random Walk : 0.02°/√h

Zero-bias repeatability : ≤2°/h

Working Temperature : -45~+70℃

Output Mode : Analog

Weight : ≤70g.

Contact Now

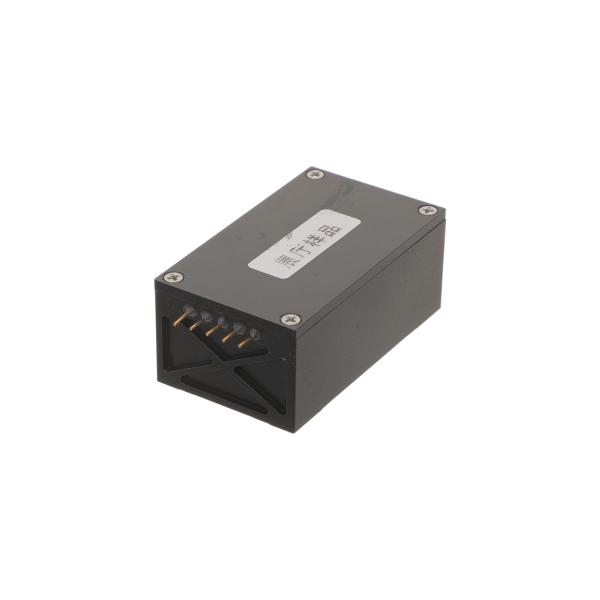

MFOG-095 is a micro-nano fiber optic gyroscope built for precision and reliability. Using Sagnac interferometry, it measures angular velocity with minimal drift. Its solid-state design ensures durability, low weight, and compact size, withstanding harsh conditions: operating temperature -40℃~+70℃, storage -55℃~+85℃, and random vibration up to 20g.
Perfect for UAVs, vehicles, and aerospace navigation systems, the MFOG-095 is a cost-effective replacement for Fizoptika VG095.

Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/ o /s)	≥10
3	Zero-bias stability (10s, 1σ, o /H)	≤2
4	Zero-bias repeatability (1σ, o /H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7

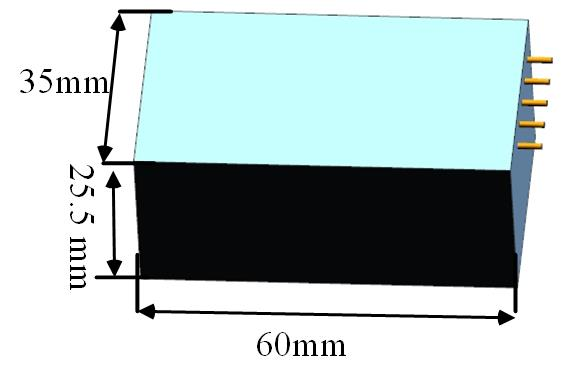

Mechanical interface Silicon Photonic FOG with Advanced Bias Compensation Algorithm
