High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying

Name: High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying
Brand: Firepower
Price: 1 USD

Buy cheap High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying product

Brand Name : Firepower

Model Number : MFOG-091A

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C

Supply Ability : 1000/month

Delivery Time : 10 days for sample

Packaging Details : carton with sponge

Zero Bias Repeatability : ≤2°/h

Zero-bias stability : ≤2°/h

Random Walk : 0.04 °/√hr

Range : 300°/s

Scale Factor Nonlinearity : ≤1000ppm

Measuring Range : ±300º/s

Storage Temperature : -55~+85°C

Vibration Resistance : 20 g

Operating Temperature Range : -40°C to +70°C

Connector : soldering pin/ pad

Contact Now

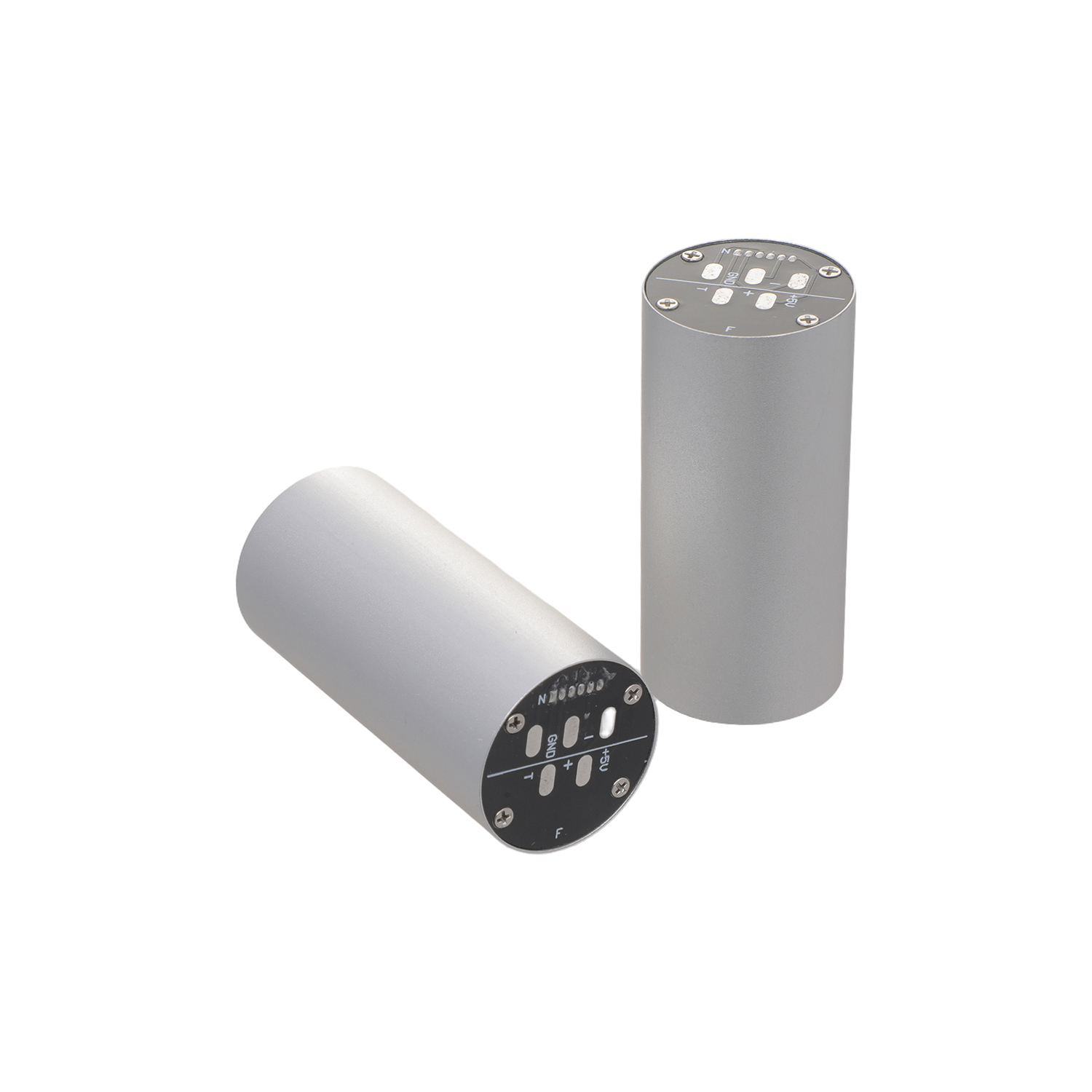

FizoptikaVG091A is a high-integration angular rate sensor fusing optics, mechanics, and electronics, based on the Sagnac effect. It integrates micro-nano fiber devices to detect angular rate via phase difference analysis of counter-propagating light beams. Featuring a simple structure (no moving/wear parts), fast startup, tiny size (φ24mm × 51.6mm, cylindrical), light weight (≤30g), and wide temperature adaptability (-40℃~+70℃ operating, -55℃~+85℃ storage), it excels in carrier attitude control and measurement. It also withstands 20g random vibration (20Hz~2000Hz) for harsh scenarios.

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/^o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H ^1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24X51.6

External Power Supply Requirements

	+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

MFOG-091A Node Definition

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+	Differential Output
4	GND	Power ground
