Fiber Optic Gyroscope for AHRS and Attitude Control System

Name: Fiber Optic Gyroscope for AHRS and Attitude Control System
Brand: Firepower
Price: 1 USD

Buy cheap Fiber Optic Gyroscope for AHRS and Attitude Control System product

Brand Name : Firepower

Model Number : MFOG-095

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 10 days for sample

Packaging Details : carton with sponge

Measurement Range : ±150°/s

Bias Instability : ≤2°/h

Angle Random Walk : ≤0.02°/h1/2

Scale Factor : ≥10mv/o/s

Output Drive Voltage : ≥5Vpp

Power : 0.7w

Contact Now

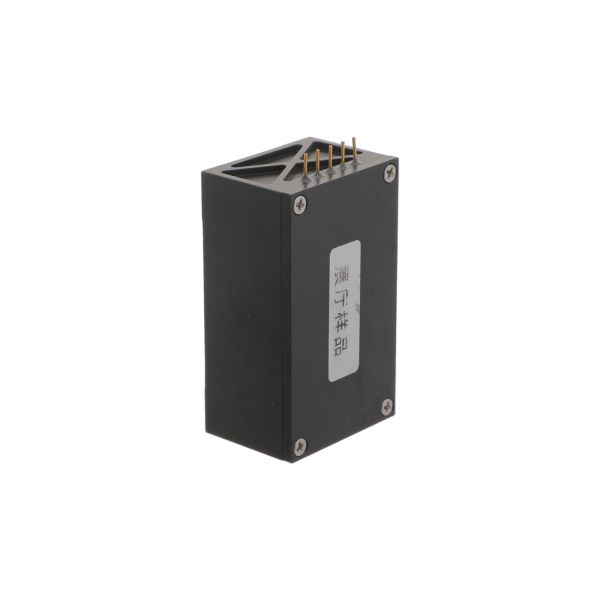

MFOG-095 is a micro-nano fiber optic gyroscope designed for attitude control and inertial navigation. Utilizing the Sagnac effect, it delivers precise angular rate output with low drift.
Key features include solid-state design, lightweight ≤70g, fast startup, and high vibration tolerance (20g, 20Hz–2000Hz). Compatible with harsh environments, it offers a direct replacement for Fizoptika VG095 in aerospace and defense applications.Fiber Optic Gyroscope for AHRS and Attitude Control System

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/ o /s)	≥10
3	Zero-bias stability (10s, 1σ, o /H)	≤2
4	Zero-bias repeatability (1σ, o /H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7

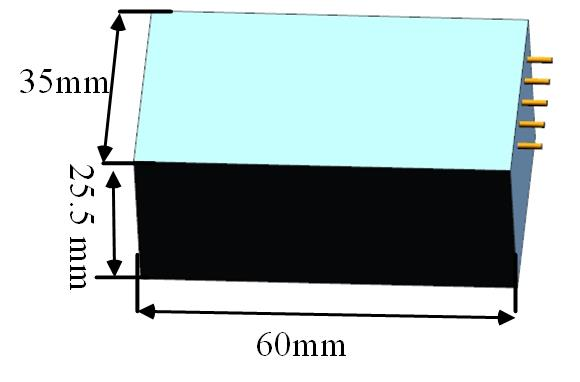

Mechanical interface Fiber Optic Gyroscope for AHRS and Attitude Control System
